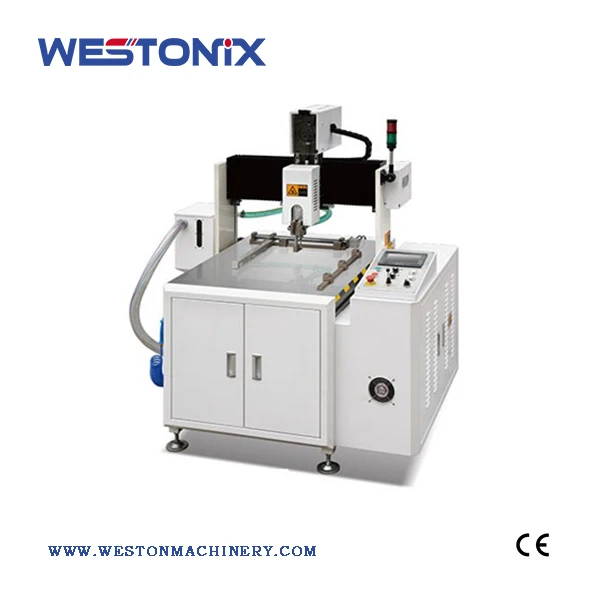

WST-720 Automatic Drilling Machine for Paper Label Tag
Quotation
|
Model |
WST-720 |
||
|
QTY |
1 |
||
|
Price |
USD 8000 |
||
|
Payment |
L/C, T/T |
||
|
Port |
Ningbo |
||
|
Remarks: 1. 30% for deposit, 70% before delivery. 2. The quotation is valid for 2 months. |
|||

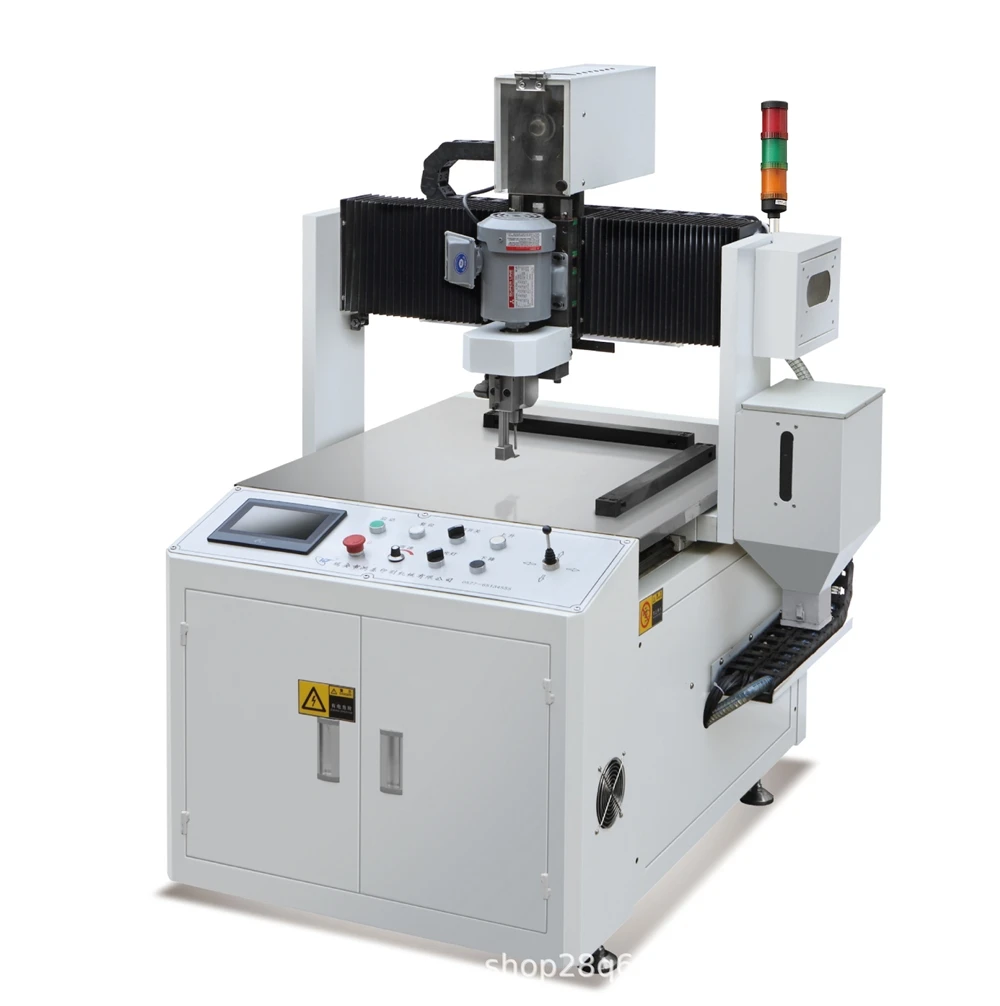

Model: WST-720
Automatic computer high-speed drilling machine, high degree of automation, can be programmed on the touch screen, after printing, according to the number of holes you need, hole spacing all processing, and then use the die-cutting machine to cut the finished products you need. It is especially suitable for products such as hanging tag, which can replace several drilling machines, greatly improve productivity and reduce labor intensity.
Electric configurations
|
Item |
Model |
Brand |
Brand origin |
|
DC power supply |
NES-100-24 |
Schneider |
French |
|
Relay |
MY2N-GS |
OMRON |
French |
|
AC contactor |
LC1-0910 |
Schneider |
French |
|
4-position switch |
XD2PA24CR |
Schneider |
French |
|
Knob |
XB2BD2C |
Schneider |
French |
|
proximity switch |
XS212BLNBL2C |
Schneider |
French |
|
Servo motor |
SV-DA200-OR4-2-EO |
INVT |
China |
|
Leakage protection airswitch of general power supply |
BKN-D16-3 |
GL |
South Korea |
|
Leakage protection airswitch of independent power supply |
BKN-D6-1 |
GL |
South Korea |
|
Touch screen |
7'' |
Weinview |
Taiwan |
|
Micro-computerized controller |
CPIE-N30SDT-D |
OMRON |
Japan |
Speed drilling machine technical parameters
|
Model |
WST-720 |
|
The hole diameter mm |
Φ3-Φ8 |
|
Drill hole depth mm |
1-45 |
|
Drill holing needle(tip) speed |
0-6000 DC motor speed regulation |
|
Drilling way |
Hollow core drilling |
|
Holing needle handle |
H |
|
Product size mm |
720x600 |
|
Workbench height mm |
750 |
|
Working speed |
10-45 times / min |
|
Motor total power |
2.2KW |
|
Overall dimensions mm |
1250x1500x1500 |
|
Machine net weight kg |
550 |
Tool cabinet
|
Name |
Quantity |
|
Tape measure |
1 |
|
Slotted screwdriver |
1 |
|
Cross screwdriver |
1 |
|
Screws and nuts |
Many |
|
Sponges |
Many |
|
Adjustable wrench |
1 |
|
Fixed magnet |
2 |
|
Inner hexagon spanner |
A set |
|
Open end wrench |
1 |
Three view dimension drawing of QDQK-720
