AG Automatic Pre-fold and Crash lock bottom folder gluer
This machine is specially used for paperboard shaping and adhesive processing after cutting horizontally. Its universality is strong and suitable scope is wide, which can fold and paste various straight seaming box and bottom edging box.
After starting the machine, the automatic paper feeding table will feed the paper sheets needed to be pasted out one by one continuously. The gluing device will automatically coat the glue on the adhesive position of paper box evenly. The glued paper sheets also will automatically send to the fold part. In the course of paper sheets ahead, the belt device of the fold part will automatically fold and stick the paper box. After finishing the fold and adhesion, send the paper box to the pressing part. After pressing, send it to the conveying part to be pressed firmly, finally send it to the paper receiving table. The whole working procedure is finished.
Specification
|
Model |
SHH-800AG |
|
Paper Material |
210-700g/m² paperboard(E/F) corrugated board |
|
Max. Liner speed |
0-220m/min continuous adjustment |
|
Feeding way |
Automatic feeding |
|
Way of folding |
single side gluing or both side gluing, pre-folding, crash lock bottom |
|
Glue Material |
Cold glue/water-based glue |
|
Electric power |
6.5KW AC380V 3P |
|
Weight |
2900KG |
|
Machine dimension |
9000 x 1100(1300 )x 1350 |
| Technical Sheet | Unit: mm | |||
|
Samples |
||||
|
Common box type and size：(MM) |
|
|||
|
Model |
SHH-600AG |
SHH-800AG |
||
| Paper type |
Cardboard |
Cardboard |
E/F Corrugated |
|
|
A+B+C+D |
100-580 |
150-780 |
180-680 |
|
|
C+D Min |
50 |
75 |
90 |
|
|
D Min |
8 |
8 |
8 |
|
|
F Min |
50 |
50 |
50 |
|
|
G |
70-700 |
70-700 |
150-580 |
|
|
Lock bottom carton type and size：(mm) |
|
|||
|
Model |
SHH-600AG |
SHH-800AG |
||
| Paper type |
Cardboard |
Cardboard |
E/F Corrugated |
|
|
A+B+C+D |
200-550 |
200-750 |
200-750 |
|
|
C+D Min |
100 |
100 |
100 |
|
|
D Min |
25 |
25 |
25 |
|
|
F Min |
70 |
70 |
70 |
|
|
G |
150-600 |
150-600 |
150-580 |
|
|
H |
25 |
25 |
25 |
|
Feature introduction
5-6pcs Adjustable feeding belts to ensure easy adjustment, stable and smoothly feeding.
Continuously Variable Speeder to ensure feeding internal and stable transmission.
One-touch Pneumatic knife, easy for the adjustment of feeding belts.
Double-board structure with a set of pre-folding knife.
Pre-fold angle is 135°, especially suitable for small but high cartons, more satisfactory while rapid prototyping.
Alignment(Options)
Alignment section, which automatically corrects the box after it is ejected from the paper feed section.
3-board tracking structure, upper gluer can make bottom-locked box automatic gluing and forming, can be used for the special-shaped cartons. The entire bottom-lock part is installed in a reversible bracket, substantially reduce the swap adjustment time of bottom-fold box and the other types of box.
Bottom-folding speed is 50-200 pcs per min, stable and reliable.
Lengthened folding to avoid the unevenness while the rapid forming of cartons and make it come to perfection.
2-board structure.
Two modes for pressing belt speeding:
Auto: set distance between boxes, pressing belt speed is the same as the machine, belt removes while sensor detect it.
Manual: pressing belt conveys in a fixed speed and machine speed will not put any effect on it.
With counting device to count the finished boxes to match with boxes regulating, easy to count and pack.
Equipped with feeding paper inspection device.
Equipped with impacting device to press the paper after accounting and make it easy to pack paper.
More effective treatment of paper surface UV,
the carton adhesive more stronger.
The machine adapt touchscreen adjustment,
fast to adjust.
For irregular box, Need Extra Spraying System.
Equipped with three guns, convenient in the production various special box, gluing quickly and accurately sizing.
(Options: customized on user order)
Optional banding Machine
The machine reduces labor intensity, saves manpower, improves the working efficiency of the folder gluer machine, and can make the performance of the folder gluer machine fully play.
Through surface coating treatment, to strengthen the adherence and make cartons easier to be glued.
Optional Box collection device

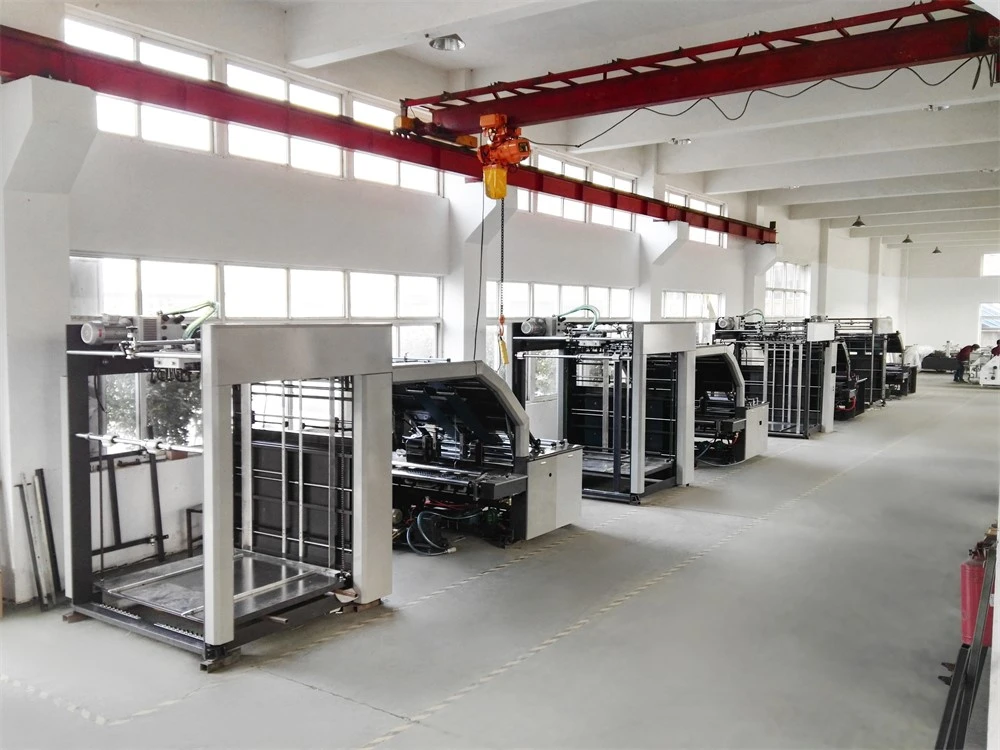

Factory Overview
Package
|
Model |
Size(L*W*H)(mm) |
Weight(kg) |
Volume(㎡) |
|
SHH-800AG |
3170×1370×1450 |
1300/1060 |
6.29 |
|
3200×1370×2100 |
1710/1580 |
9.2 |
