Automatic Sheet to sheet Cardboard Laminator

Short Description:

Product Detail

Product Tags

Application range

Widely applicable for laminating in packaging, paper box, books, puzzle,paper tag, calendars, carton, handbags, Gift box, Wine packaging paper improving the printing matter grades, and achieve the purpose of dust-proof, water-proof, oil proof. It’s the best choice for printing and laminating enterprises of all scales.

Technical parameters

Model	BK-1210
Max.Sheet Size	1200 x 1000mm
Min.Sheet Size	420 x 300mm
Top Sheet Weight	100-800/m2
Bottom Sheet Weight	180-2400/m2
Laminating Accuracy	±0.5
Speed	5~105m/min
Power	12Kw
Weight	7000kg
Dimension	9000 x 2100 x 2200
Packaging size(1*40HQ remain 2meter)	2000 x 1460x 2480mm; 4150 x 2060 x 2320mm 4320 x 2315 x 2220mm

Remark: accept customize large size of the machine depend on customer need.

Detail configuration

Coating System

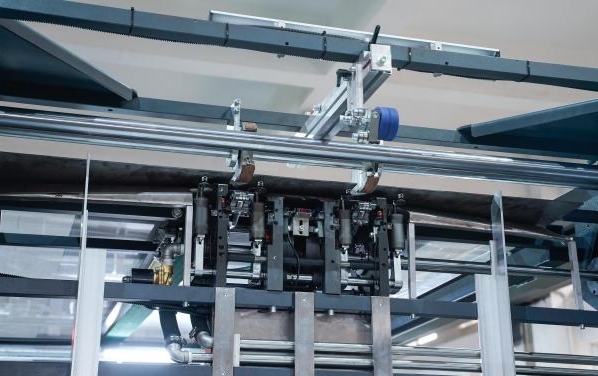

Leading-edge Feeder System

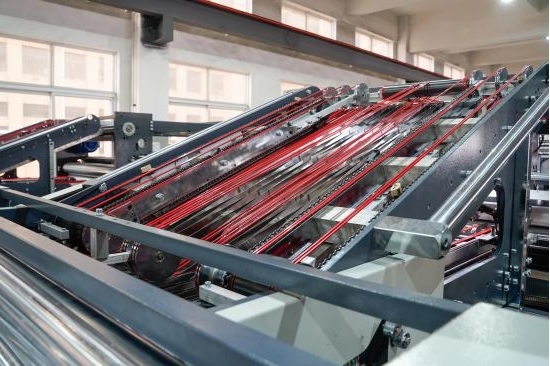

Top sheet dynamic aligning system

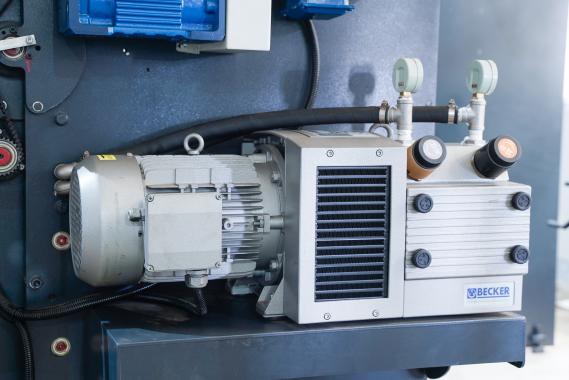

Airing System

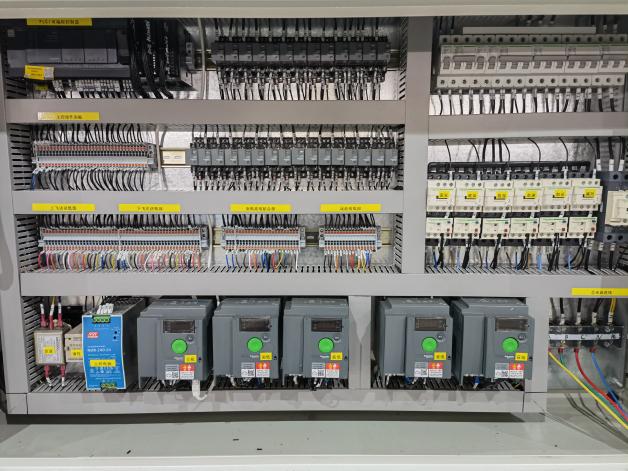

Control system

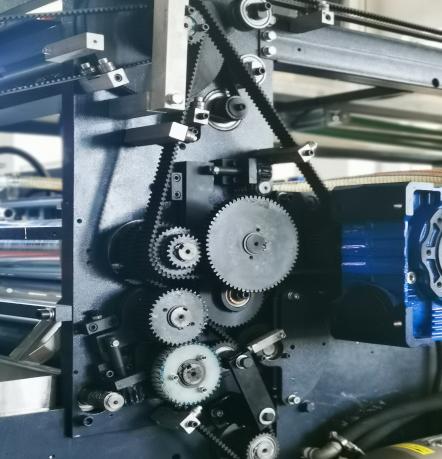

Drive system

Main Performance

Unique paper dynamic aligning system, the whole machine in power transmission by a complete set of timer belts. Free maintenance, low noise and high efficiency

Leading-edge feeder system, easy to operate for different jobs.

Vibra-Loose Collecting Mechanism, capable of loosening mullet-laid laminated sheets and pushing neatly to ensure smooth collection of paper. E-type holder plate and high-speed elevator jointly pull-out laminated sheets rapidly and conveniently, which greatly increase the working efficiency.

Adopt E-type paper holder plate, convenient for quick paper replenishment by pushing pallet trolley directly to the holder plate.

Motorized calibration of running speed and pressing paper Length allows easy change-over of different paper sizes.

Under control of high precision coating mechanism, the coating volume of gluing roller and glue adjusting roller can reach less than 0.08mm. Automatic glue level control: accurately adjust coating volume required by different paper to ensure even gluing.

Convenient paper separator: separate the paper from the gluing roller quickly and easy for dismantling, cleaning and calibration of the gluing roller, wipe the glue back to

the roller to prevent roller ends at high speed from glue overflowing, and it can also adjust back flow to recycle the glue.

Use PLC computer program control system, monitor display for machine running in real time.

Note: pictures and data for reference only, change without notice.

Service and Warranty

A : F Marketing & Technical Service Center Technical Training Professional operating engineers sent by is responsible for equipment installation and commissioning work at the same time, training for user operators.

The customer need to bear his Visa, round-trip ticket, whole trip room and board and afford 100.00 USD per day wage.

B : F Training Content:

All machines have been finished all adjustment and test in our workshop before delivery, the mechanical structure, components adjustment, electrical operation of the switch, and the matters needing attention, day-to-day maintenance of equipment, etc., In order to ensure the normal operation of equipment, later.

C : F Warranty:

13 months for electric parts, the service is for whole life, once you asked the spare parts, we can send immediately, customer afford the courier fee. (Since the date of purchase from delivery and on the board, within 13 months)
