WST-1300 1450 1650 H Semi Automatic Laminator Flute Laminating Machine for Cardboard and Corrugated Board

Short Description:

Using suction feeding automatic of bottom sheet, according to the main machine operating speed, continuous automatic tracking

Product Detail

Product Tags

Company Introduction

Wenzhou Weston Print and Pack Machinery CO., LTD is a professional manufacturer for post-press equipment, mainly produce flute laminating machine, folder gluer and bopp film laminating machine, etc. WESTON Machinery with the development for 20 years, we become a high-tech enterprise. Our products have got CE certificate. We supply qualified equipment, effective and convenient solutions for cardboard box and corrugated box folding industry. We will be continuously providing higher quality and satisfying services in return for the support and favors of our customs.



1. Using suction feeding automatic of bottom sheet, according to the main machine operating speed, continuous automatic tracking
2. The height of top paper flat is up to 1.85m. The humanized design that manually feeding from the front makes delivery more easier and efficient.
3. Entire new concept, front gauge registration, position high accuracy, bottom sheet never exceeds the top sheet.
4. Machine uses touch-screen / PLC control system, the circuit system is stable, and can automatically display the failure alarm
5. The automatic replenishment system of glue can be added automatically during glue losses, and recycling with the glue to avoid loss of waste;
6. The scientific design of the metering roller speed to ensure the glue evenly on the same time, to avoid rejection of glue at high speed.
7. Floating removable press, to ensure that laminated paper will not be crushed, and also keep the cardboard smooth and straight; unilateral adjustment by way of adjustment worm roll lamination pressure for quick
8. Control of water tank cleaning cycle using an independent method, clean, hard rubber product;
9. Suitable for color top sheet 175-500g and A/B/C/D/E/F corrugated paper laminating;
10.Color top sheet 175-500g and grey cardboard paper laminating.

MODEL WST-1300H WST-1450 H WST-1650 H
Max Sheet 1300*1250mm 1450*1250mm 1650*1250mm
Min Sheet 350×350mm 350×350mm 350×350mm
Laminating Speed 90m/mins 90m/mins 90m/mins
Measurement 8500*1970*1850mm 8500*2120*1850mm 8500*2320*1850mm
Machine Power 8.5KW 9.5KW 10.5KW
Bottom Paper Thickness A, B, C, E, F<7mm corrugated board A, B, C, E, F<7mm corrugated board A, B, C, E, F<7mm corrugated board
Total Weight 4800kgs 5300kgs 5500kgs

1*20HQ container


Max Sheet 1450×1450mm 1650*1450mm
Min Sheet 400×400mm 400×400mm
Top Paper Thickness 180-500g 180-500g
Laminating Speed 150m/mins 150m/mins
Fitting Precision ±1.5mm ±1.5mm
Measurement 21.3×2.4×3.1M 21.3×2.6×3.1M
Machine Power 35KW 38KW
Bottom Paper Thickness A.B.C.E.F Corrugated, four ply corrugated paper.paper.Paperboard.Grey paper) A.B.C.E.F Corrugated, four ply corrugated paper.paper.Paperboard.Grey paper)
Weight 8500kgs 9000kgs
Model WST-1300H WST-1450 H WST-1650 H

Detail Introduction

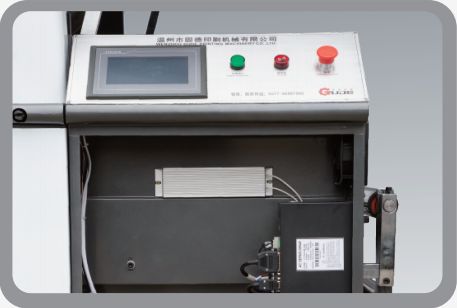

wst (1)
PLC touch screen

wst (2)
Stainless Steel Panel more smooth for paper

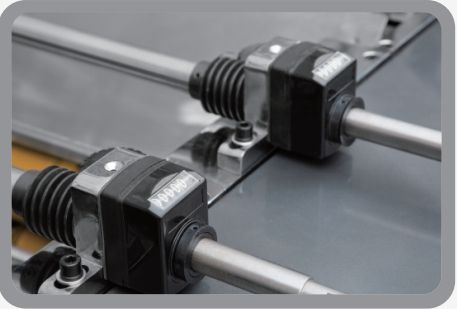

wst (3)
Digital Display Adjustment Paper Thickness

wst (4)
Automatic glue replenishment, anilox roller gluing

wst (5)
Centralized lubrication oil supply, machine work more convenient

wst (6)
Grid belt for bottom paper strong suction system

wst (7)

Packaging Photo

wst (8)

wst (9)

(1)Time of Delivery:30-45 days after receiving your advance payment
(2)Loading Port & Destination:From NINGBO,CHINA To your port
(3)Terms of Payment:30% T/T deposite,70% balance T/T payment before the shipment
(4)Quotation Valid time:30 days
(5)Warranty:One year free warranty start from waybill date.
