For commercial printing factories, packaging manufacturers and post-print finishing workshops, common UV coating pain points include uneven varnish layers, paper skewing, unstable high-speed operation, frequent manual cleaning and complicated operation. These defects cause defective finished products, waste varnish and labor, and drag down overall production efficiency.
The WESTONIX SGUV-760A fully automatic UV coating machine solves all these production pain points, integrating stable feeding, precision coating, IR drying, UV curing and automatic stacking into one complete intelligent production line, delivering consistent high-gloss/matte surface effects with lower maintenance cost and higher productivity.

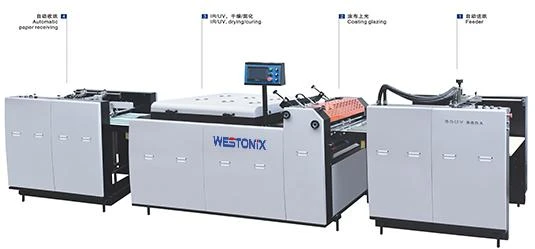

Alt=WESTONIX SGUV-760A Automatic UV Coating Machine diagram showing auto paper receiving, IR/UV drying, coating unit, and feeder
Core Production Performance
Max speed: 0-50 m/min, hourly output up to 12,000 sheets
Paper range: 80-500 gsm (coated paper, art paper, greyboard, packaging cardboard)
Stable matte/high-gloss UV coating, free of surface defects
Large touch screen with one-key start/accelerate, simpler than traditional segmented control
Technical Specifications (SGUV-760A)
|
Parameter |
Specification |
|
Model |
SGUV-760A |
|
Max sheet size |
740 × 890 mm |
|
Min sheet size |
270 × 270 mm |
|
Applicable paper weight |
80–500 g/m² |
|
Running speed |
0–50 m/min |
|
Total power |
13.5 KW |
|
UV lamp |
1 pc × 6.5 Kw |
|
IR heating lamps |
9 pcs × 1.2 Kw |
|
Overall dimension (L×W×H) |
6500 × 1400 × 1600 mm |
|
Machine net weight |
1,500 kg |
Frequently Asked Questions (FAQ)
Q: What paper materials and weights can this machine process?
A: It supports all paper stocks from 80gsm thin printing paper to 500gsm thick greyboard, widely used for commercial prints, gift cartons and rigid packaging boxes.
Q: What upgrades does this machine have compared with traditional UV coaters?
A: It adopts 55mm large shaft head, synchronous belt transmission, auto bottom roller cleaning system and dual independent oil tanks. The one-touch intelligent control replaces segmented manual operation, greatly cutting operation and maintenance time.
Q: Does the machine solve paper skewing and uneven coating problems?
A: Yes. It is equipped with air knife dual-side correction, bridge anti-skew suction device and three-roller balanced coating structure, ensuring wrinkle-free, streak-free uniform UV varnish on every sheet.
Q: What are the delivery, payment and warranty terms?
A: Delivery lead time: 30-45 working days after deposit receipt; Port of loading: Ningbo, China; Payment term: 30% T/T deposit, 70% balance before shipment; 1-year full free warranty for the whole machine. Quotation remains valid for 30 days.
Q: Can I get spare parts separately after purchase?
A: We provide complete extra spare parts price list including solenoid valves, scraper blades, fiber sensors, UV/IR lamps, conveyor belts and rubber rollers with FOB Wenzhou unit prices for your later replacement.
